Voltage: 2V, 4V, 6V, 12V, 18V, 24V, 38V
Capacity: 4AH to 3000AH
Designed floating service life:
More than 1000 cycles at 30% DOD; 350 cycles at 80% DOD
• Nonspillable
• Sealed and maintenance-free operation
• High quality and high reliability
• Exceptional deep discharge recovery
• Low self-discharge
• Long service life
• Solid copper terminals
• Tank-formed plates
• Computer-aided design and manufacturing
• UL, CE approved
• Electric powered vehicles
• Golf cars and buggies
• Toys
• Power tools, lawn mowers, vacuum cleaners
• Solar power system
• Wind power system
• PDA equipment as laptop computer, camera, phone sets, medical sets
| Type | Voltage (V) | 10h Rate Capacity (Ah) | Internal Resistance (mΩ) | Length | Width | Height | Total Height | Weight | Terminal | ||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lb | Type | Positon | ||||
| NTD12-5 | 12 | 5 | 35 | 90 | 3.5 | 70 | 2.8 | 101 | 4 | 107 | 4.2 | 1.6 | 3.53 | F1/F2 | D |
| NTD12-8 | 12 | 8 | 28 | 151 | 5.9 | 65 | 2.6 | 94 | 3.7 | 100 | 3.9 | 2.22 | 4.89 | F1/F2 | F |
| NTD12-9 | 12 | 9 | 20 | 151 | 5.9 | 65 | 2.6 | 94 | 3.7 | 100 | 3.9 | 2.5 | 5.5 | F1/F2 | F |
| NTD12-10 | 12 | 10 | 20 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.1 | 6.8 | F1B/F2/F3B | F |
| NTD12-12 | 12 | 12 | 19 | 151 | 5.9 | 98 | 3.9 | 95 | 3.7 | 101 | 4 | 3.5 | 7.72 | F1B/F2 | F |
| NTD12-18 | 12 | 18 | 17 | 181 | 181 | 77 | 3 | 167 | 6.6 | 167/167 | 6.6/6.6 | 5.3 | 11.68 | F3 | D |
| NTD12-20 | 12 | 20 | 15 | 181 | 181 | 77 | 3 | 167 | 6.6 | 167/167 | 6.6/6.6 | 5.6 | 12.35 | F3 | D |
| NTD12-24 | 12 | 24 | 14 | 166 | 166 | 175 | 6.9 | 125 | 4.9 | 125/125 | 4.9/4.9 | 7.8 | 17.2 | F4 | D |
| NTD12-28 | 12 | 28 | 10 | 166 | 166 | 175 | 6.9 | 125 | 4.9 | 125/125 | 4.9/4.9 | 8.6 | 18.96 | F4 | D |
| NTD18-8 | 18 | 8 | 43 | 151 | 5.9 | 102 | 4.02 | 100 | 3.9 | 100 | 3.9 | 4 | 8.8 | C | F |
| NTD24-4.5 | 24 | 4.5 | 60 | 206 | 8.1 | 77 | 3.3 | 74 | 2.9 | 74 | 2.9 | 3 | 6.61 | C | F |
| NTD24-10 | 24 | 10 | 50 | 301 | 11.9 | 65 | 2.6 | 102 | 4 | 102 | 4 | 5.6 | 12.35 | C | F |
| NTD24-14 | 24 | 14 | 45 | 300 | 11.8 | 98 | 3.9 | 103 | 4.1 | 103 | 4.1 | 8 | 17.64 | C | F |
| NTD24-20 | 24 | 20 | 35 | 170 | 6.69 | 146 | 5.75 | 185 | 7.28 | 185 | 7.28 | 11.5 | 25.35 | C | F |
| NTD24-12 | 36 | 12 | 60 | 190 | 7.5 | 150 | 5.9 | 115 | 4.5 | 115 | 4.5 | 9.7 | 21.4 | C | F |
| NTD6-100 | 6 | 100 | 3.5 | 194 | 7.6 | 170 | 6.7 | 205 | 8.1 | 210 | 8.3 | 15 | 33.07 | F12 | A |
| NTD6-150 | 6 | 150 | 3.2 | 260 | 10.2 | 180 | 7.1 | 245 | 9.6 | 250 | 9.8 | 23.5 | 51.81 | F14 | B |
| NTD6-200 | 6 | 200 | 3.1 | 321 | 321 | 176 | 6.9 | 226 | 8.9 | 246/229 | 9.7/9.0 | 30.5 | 67.24 | F7/F15 | A |
| NTD6-190 | 6 | 190 | 2.2 | 243 | 9.57 | 187 | 7.36 | 253 | 9.96 | 276 | 10.87 | 28.5 | 62.83 | F15 | B |
| NTD6-220 | 6 | 220 | 2 | 243 | 9.57 | 187 | 7.36 | 253 | 9.96 | 276 | 10.87 | 32 | 70.55 | F15 | B |
| NTD8-180 | 8 | 180 | 3 | 260 | 10.24 | 182 | 7.17 | 295 | 11.61 | 298 | 11.73 | 36.5 | 80.47 | F15 | C |
| NTD12-33 | 12 | 33 | 10 | 195 | 195 | 130 | 5.1 | 155 | 6.1 | 180/166 | 7.1/6.5 | 9.5 | 20.94 | T7/T9 | C |
| NTD12-40 | 12 | 40 | 8.5 | 197 | 197 | 165 | 6.5 | 170 | 6.7 | 170/170 | 6.7/6.7 | 12.5 | 27.56 | T4/T9 | D |
| NTD12-55 | 12 | 55 | 6.5 | 229 | 229 | 138 | 5.4 | 208 | 8.2 | 230/211 | 9.1/8.3 | 16.5 | 36.38 | T5/T9 | C |
| NTD12-60 | 12 | 60 | 7 | 260 | 260 | 168 | 6.6 | 211 | 8.3 | 233/214 | 9.2/8.4 | 18.5 | 40.79 | T5/T9 | C |
| NTD12-70 | 12 | 70 | 6.5 | 260 | 260 | 168 | 6.6 | 211 | 8.3 | 233/214 | 9.2/8.4 | 21.5 | 47.4 | T5/T9 | C |
| NTD12-80 | 12 | 80 | 5.5 | 260 | 260 | 168 | 6.6 | 211 | 8.3 | 233/214 | 9.2/8.4 | 23.2 | 51.15 | T5/T9 | C |
| NTD12-65 | 12 | 65 | 6 | 350 | 350 | 167 | 6.6 | 179 | 7 | 186/179 | 7.3/7.0 | 20.8 | 45.86 | T5/T9 | C |
| NTD12-90 | 12 | 90 | 5.5 | 306 | 306 | 169 | 6.7 | 211 | 8.3 | 233/214 | 9.2/8.4 | 26.8 | 59.08 | T5/T9 | C |

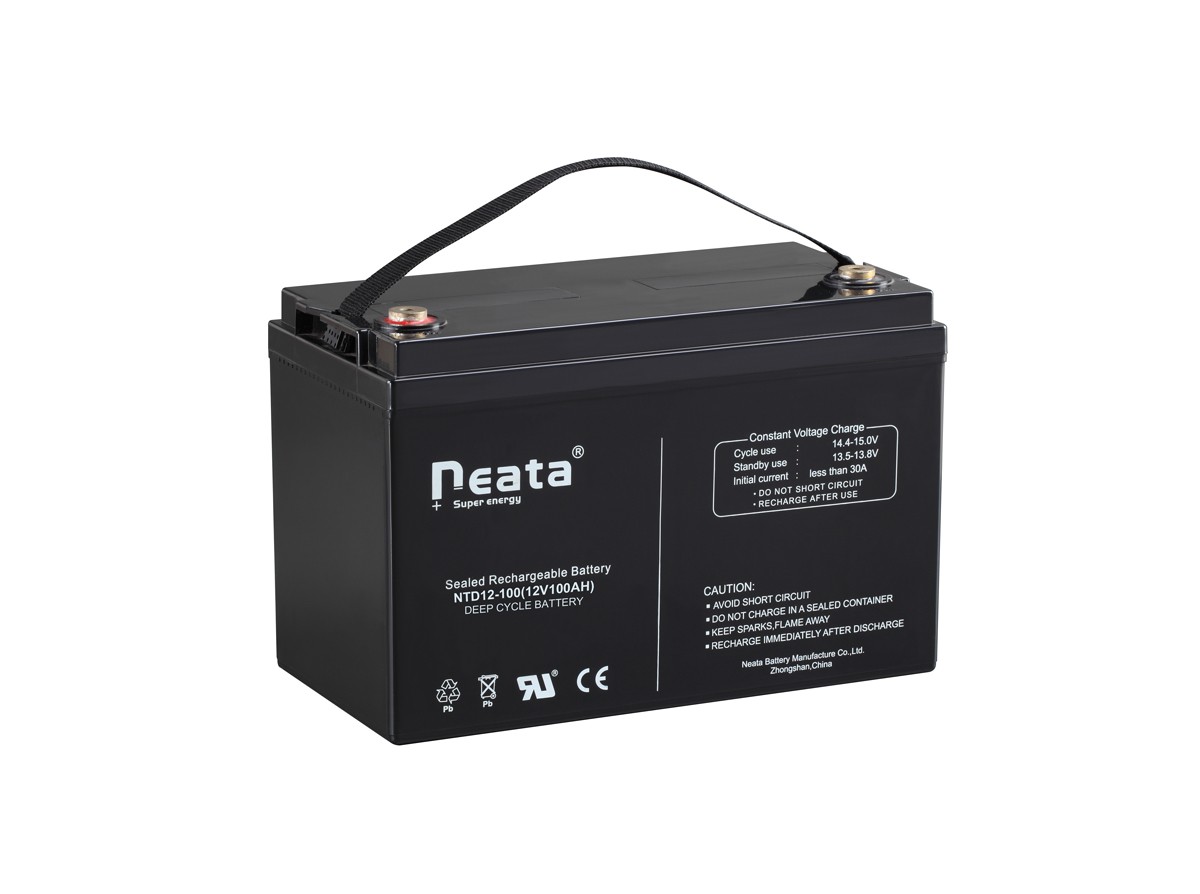

| NTD12-100 | 12 | 100 | 4.5 | 330 | 330 | 171 | 6.7 | 214 | 8.4 | 224/220 | 8.8/8.7 | 30 | 66.14 | T5/T9 | C |
| NTD12-120 | 12 | 120 | 4 | 409 | 409 | 176 | 6.9 | 225 | 8.9 | 225/225 | 8.9/8.9 | 35 | 77.16 | T5/T11 | C |
| NTD12-150 | 12 | 150 | 3.5 | 485 | 485 | 172 | 6.8 | 240 | 9.4 | 242/240 | 9.5/9.4 | 43 | 94.8 | T5/T11 | C |
| NTD12-180 | 12 | 180 | 3.3 | 494 | 494 | 206 | 8.1 | 209 | 8.2 | 235/235 | 9.3/9.3 | 54 | 119.05 | T20/T11 | E |

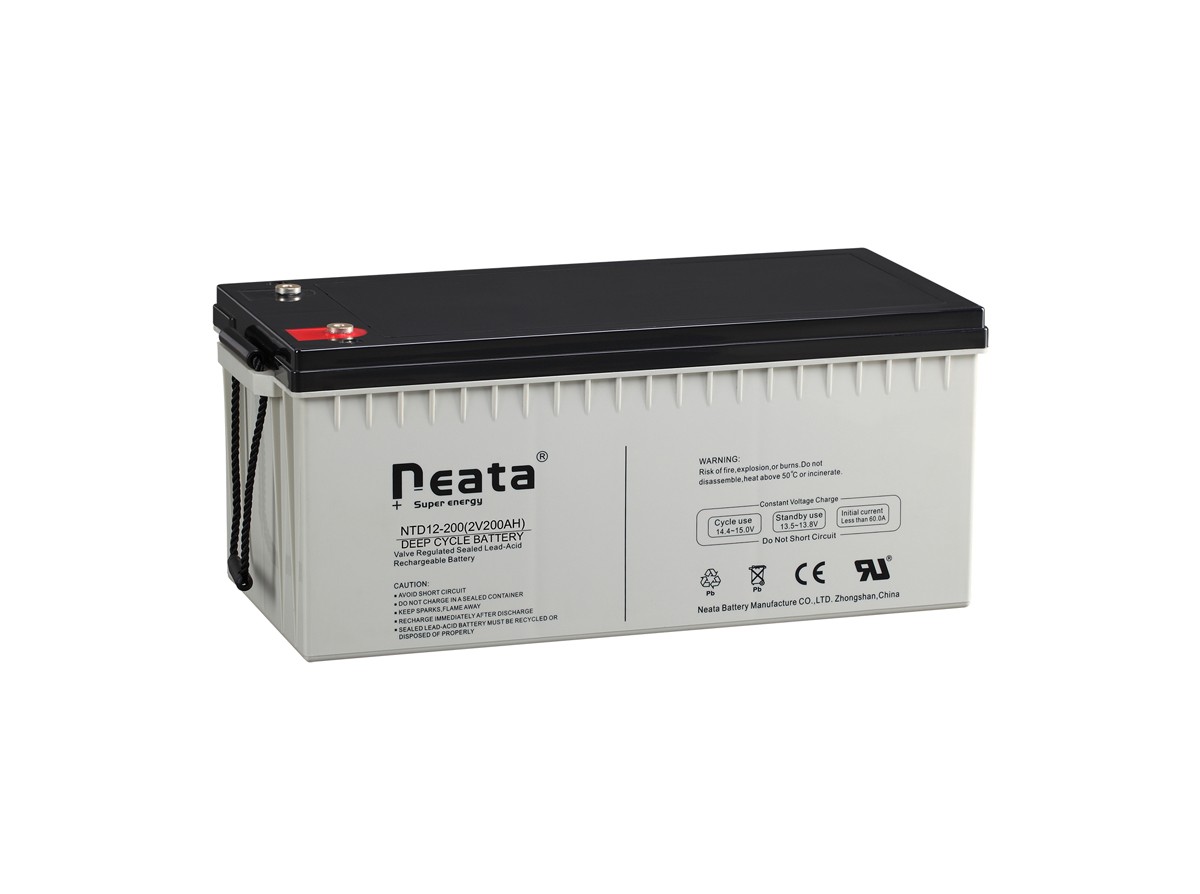

| NTD12-200 | 12 | 200 | 3 | 522 | 522 | 238 | 9.4 | 218 | 8.6 | 238/221 | 9.4/8.7 | 60.5 | 133.38 | T5/T11 | E |
| NTD12-250 | 12 | 250 | 2.6 | 521 | 521 | 269 | 10.6 | 220 | 8.7 | 242/223 | 9.7/8.8 | 72.8 | 160.5 | T5/T11 | E |
| NTD2-100 | 2 | 100 | 0.9 | 171 | 171 | 72 | 2.83 | 205 | 8.07 | 210 | 8.27 | 7.1 | 15.7 | F7/F14 | A |
| NTD2-200 | 2 | 200 | 0.75 | 173 | 173 | 111 | 4.37 | 328 | 12.91 | 365 | 14.37 | 14.3 | 31.5 | F8/F15 | B |
| NTD2-300 | 2 | 300 | 0.68 | 171 | 171 | 151 | 5.94 | 330 | 13 | 366 | 14.41 | 19.7 | 43.4 | F8/F15 | A |
| NTD2-400 | 2 | 400 | 0.53 | 211 | 211 | 176 | 6.93 | 330 | 13 | 367 | 14.4 | 26.5 | 58.4 | F8/F15 | I |
| NTD2-500 | 2 | 500 | 0.42 | 241 | 241 | 172 | 6.77 | 330 | 13 | 366 | 14.41 | 31.8 | 7.01 | F9/F15 | I |
| NTD2-600 | 2 | 600 | 0.35 | 302 | 302 | 175 | 6.89 | 330 | 13 | 366 | 14.41 | 39.8 | 87.3 | F9/F15 | I |
| NTD2-800 | 2 | 800 | 0.27 | 410 | 410 | 175 | 6.89 | 330 | 13 | 365 | 14.37 | 54.6 | 120.4 | F9/F15 | J |
| NTD2-1000 | 2 | 1000 | 0.28 | 475 | 475 | 175 | 6.89 | 330 | 13 | 365 | 14.37 | 64.2 | 141.5 | F10/F15 | J |
| NTD2-2000 | 2 | 2000 | 0.15 | 491 | 491 | 350 | 13.8 | 350 | 13.8 | 383 | 15.08 | 129.3 | 285.1 | F10/F15 | J |
| NTD2-3000 | 2 | 3000 | 0.13 | 712 | 712 | 353 | 13.9 | 342 | 13.46 | 382 | 15 | 199 | 438.7 | F10/F15 | K |
